SHIP NOTES: (Sources: Gentile, Wynn Vol. 1) | |||
Name: U-352 | Type: Submarine (VII-C) | ||
Built: Flensburger Schiffsbau | Keel Laid: 3/11/1940 Launched: 5/1/1941 Commissioned: 8/28/1941 |
||
Date Sunk: 5/9/42 | Cause: Depth-charged by USCG Icarus and scuttled by crew | ||
Size (ft.): 218 x 20 x 15 | Tonnage: 1070 displacement tons fully loaded | ||
Propulsion: Two diesel engines/two electric motors | Location N34° 13.682'/W76° 33.907' |
|
|||
MISCELLANEOUS & CONSTRUCTION NOTES: (Sources:Stern, Westwood) | |||
Constructed between 1938-1944, the VIIC boats were slightly larger internally than their predecessor, the type VIIB and also had a slightly improved surface range. (9700 nautical miles to 9400 nautical miles, at 10 knots, combined diesel/electric drive) Their maximum surface speed was 17-17.7 knots and their maximum submerged speed was 7.6 knots. The type VIIC carried 14 torpedoes (4 in forward tubes, 8 in forward torpedo compartment, 1 in aft torpedo tube and 1 aft torpedo compartment). The orginal VIIC design included a 88mm deck gun mounted forward of conning tower. Effective against surface vessels in the early years of the war, this gun was removed from new and older boats after 1942 due to the increased danger of enemy air attack. The boat was designed to carry 60 men (4 officers and 56 enlisted men) The type VIIC was by far the most common of the World War II German u-boats with 660 boats built. |
|
|||
|
|||
|
|||
SHIP HISTORY: (Sources:Wynn) | |||
Commander: KL Hellmut Rathke [August, 1941 to May 5, 1942] Group: 3rd U-Flotille, Kiel/La Pallice Patrols: 3/Ships Sunk: 0 Patrol I: Patrol II: Patrol III: |
|||
USCG Cutter Icarus arrives in Charleston, SC with U-352 survivors (23) |
U-352 survivors after disembarking from the USCG Cutter Icarus (23) |
||
U-352 Commander KL Hellmut Rathke (2nd from L) (23) | U-352 survivors in POW mess hall (23) | ||
|
|||

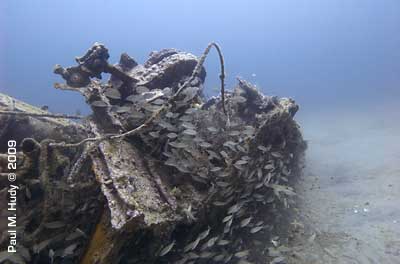

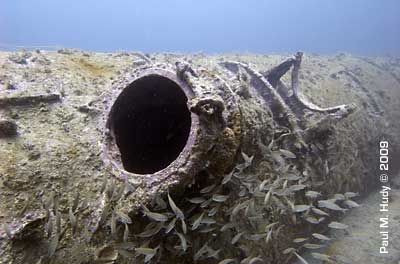

Looking down the pressure hull at the deck gun mount with
conning tower in the background. Battery loading hatchway just forward of the deck gun mount (circa 2009) |
|||

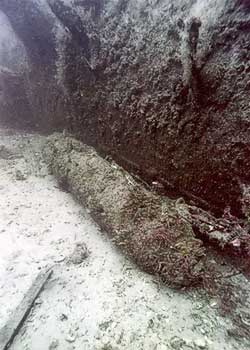

U-352 (circa 2023) the rusted edges are the only thing left of about half of the port side external ballast tanks
|
DIVING NOTES: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diving Depths: 100-115 ft. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Visibility: Generally very good; range 50 to 100+ ft. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Current: Slight to moderate | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Summer Temperature: high 70s to lo 80s | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Points of Interest: Hey! It's a U-Boat! What more needs to be said? | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fish/Animal Life: The usual array of NC marine life, with unusually smart grouper and small tropical fish. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
